Signal modules digital

Structure and Function

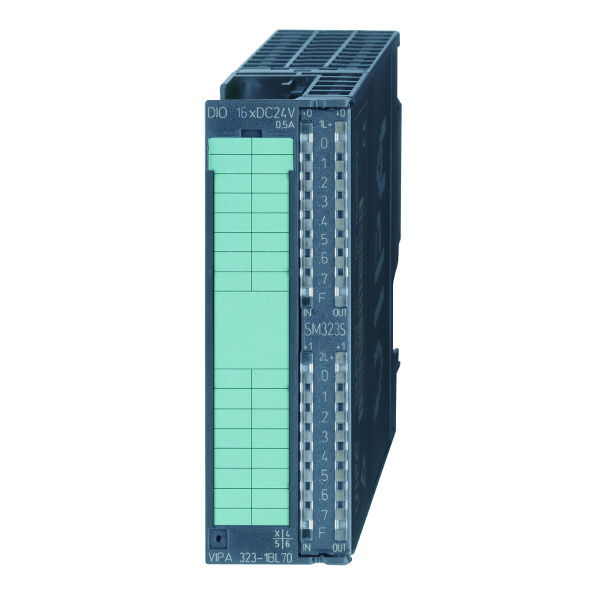

Digital modules for the connection of sensors and actuators are the interface of the PLC to the process. Digital input modules acquire the binary control signals from the process level and transform them into interpretable signals for the control. Digital output modules convert the internal binary control signals into signals suitable for the process level.

Characteristics

  • Large selection. Modules are available for all popular applications
  • High-Speed DI-module for the SPEED-Bus (parameters 2.56 µs … 40 ms)
  • High-Speed DO-module for the SPEED-Bus (100 kHz)
  • Compact design
  • LED-status indicator
  • Electrically isolated to the backplane bus
  • Selectable connection method – screw terminals or cage clamps
  • Label strips included and easily visible on the front
  • 24 month warranty

Products catalog

CodeDescription

321-1BH01

VIPA - System 300S - Moduły cyfrowe - SM 321 – Digital input (321-1BH01)

SM 321 – Digital input
16×DI DC 24V

More

321-1BH70

VIPA - System 300S - Moduły cyfrowe - SM 321S – FAST Digital input – SPEED-Bus (321-1BH70)

SM 321S – FAST Digital input
SPEED-Bus, 16×DI DC 24V, parameterizable 2.56µs…40ms

More

321-1BL00

VIPA - System 300S - Moduły cyfrowe - SM 321 – Digital input (321-1BL00)

SM 321 – Digital input
32×DI DC 24V

More

321-1FH00

VIPA - System 300S - Moduły cyfrowe - SM 321 – Digital input (321-1FH00)

SM 321 – Digital input
16×DI AC 120/230V

More

322-1BF01

VIPA - System 300S - Moduły cyfrowe - SM 322 – Digital output (322-1BF01)

SM 322 – Digital output
8×DO DC 24V, 2A

More

322-1BH01

VIPA - System 300S - Moduły cyfrowe - SM 322 – Digital output (322-1BH01)

SM 322 – Digital output
16×DO DC 24V, 1A

More

322-1BH41

VIPA - System 300S - Moduły cyfrowe - SM 322 – Digital output (322-1BH41)

SM 322 – Digital output
16×DO DC 24V, 2A

More

322-1BH60

VIPA - System 300S - Moduły cyfrowe - SM 322 – Digital output (322-1BH60)

SM 322 – Digital output
16×DO DC 24V, 0,5A, for manual operation

More

322-1BH70

VIPA - System 300S - Moduły cyfrowe - SM 322S – FAST Digital output – SPEED-Bus (322-1BH70)

SM 322S – FAST Digital output
SPEED-Bus, 16×DO DC 24V, 0,5A, 100kHz

More

322-1BL00

VIPA - System 300S - Moduły cyfrowe - SM 322 – Digital output (322-1BL00)

SM 322 – Digital output
32×DO DC 24V, 1A

More

322-1HH00

VIPA - System 300S - Moduły cyfrowe - SM 322 – Digital output (322-1HH00)

SM 322 – Digital output
16×DO, DC 24V/AC 230V, 5A, relays

More

322-5FF00

VIPA - System 300S - Moduły cyfrowe - SM 322 – Digital output (322-5FF00)

SM 322 – Digital output
8×DO AC 120/230V, 2A, potential separated per channel

More

323-1BH00

VIPA - System 300S - Moduły cyfrowe - SM 323 – Digital in-/output (323-1BH00)

SM 323 – Digital in-/output
16×DIO DC 24V (DO 1A)

More

323-1BH01

VIPA - System 300S - Moduły cyfrowe - SM 323 – Digital in-/output (323-1BH01)

SM 323 – Digital in-/output
8×DI DC 24V, DO 8×DC 24V, 1A

More

323-1BH70

VIPA - System 300S - Moduły cyfrowe - SM 323S – FAST Digital in-/output – SPEED-Bus (323-1BH70)

SM 323S – FAST Digital in-/output
SPEED-Bus, 16×DIO DC 24V (DO 0,5A), DI parameterizable 2.56µs…40ms, DO 100kHz

More

323-1BL00

VIPA - System 300S - Moduły cyfrowe - SM 323 – Digital in-/output (323-1BL00)

SM 323 – Digital in-/output
16×DI DC 24V, 16×DO DC 24V, 1A

More

Download area

TypeDescription
VIPA - System 300S - SM 32x, SM 33x

VIPA - System 300S - SM 32x, SM 33x
Manual w j. angielskim dla modułów cyfrowych i analogowych Systemu 300S firmy VIPA

Download
VIPA - System 300S - Tabela zużycia prądu

VIPA - System 300S - Tabela zużycia prądu
Tabela w j. niemieckim i angielskim

Download
Supported modules System 300S

Supported modules System 300S
Lista modułów S7-300 kompatybilnych z VIPA 300S w j. angielskim (wersja 2012-11-26)

Download
SPEED7 brochure

SPEED7 brochure
Broszura informacyjna rozwiązania SPEED7 w j. angielskim

Download
VIPA – Main Catalog 2014/2015

VIPA – Main Catalog 2014/2015
Katalog produktów VIPA w j. angielskim (26,6MB)

Download
VIPA - Product discontinuations

VIPA - Product discontinuations
Informacje o wycofywanych produktach wersja z 29/06/2012

Download
Pliki GSD dla wszystkich systemów VIPA (v209)

Pliki GSD dla wszystkich systemów VIPA (v209)
Cx000023_V209 (1,27MB)

Download
Biblioteki VIPA (v131_01)

Biblioteki VIPA (v131_01)
VIPA SFCs, FBs, FC´s (System 100V, 200V, Speed7) (320kB)

Download
